Ref: AS240M-48
Monocrystalline Silicon photovoltaic panel, delivering a power of 240w.
- Cell size: 156.75mmx156.75mm
- Panel Dimensions: 1324mmx992mmx35mm
- Weight: 15 kg

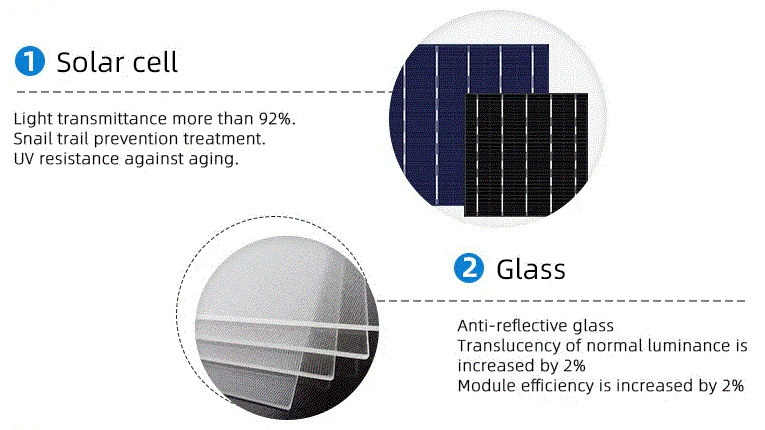

- Solar cell: Mono 157*157 Cell
- Panel Efficiency: 240w
- Connector: Compatible Connector
- Junction Box: IP67 Rated Waterproof
- Frame: Anodized Aluminium Alloy
- Front Cover: 3.2mm High Transmission Low Iron
- Warranty: 25 years
- Certificate: CE, TUV, IEC, IOS
1 Photovoltaic panel 240 Wp.
60 days to retract
Delivery in Europe 3 - 7 working days
240 Wp Photovoltaic Solar Panel Monocrystalline AS240M-48
庫存單位： AS240M-48
€52.80價格
Technical features
Electrical Parameter
- Power(W): 240
- Vmp(V): 25.5
- Imp(A): 9.42
- Voc(V): 31.5
- Isc(A): 9.77
Mechanical Parameter
- Cell: 48 cells mono solar cell

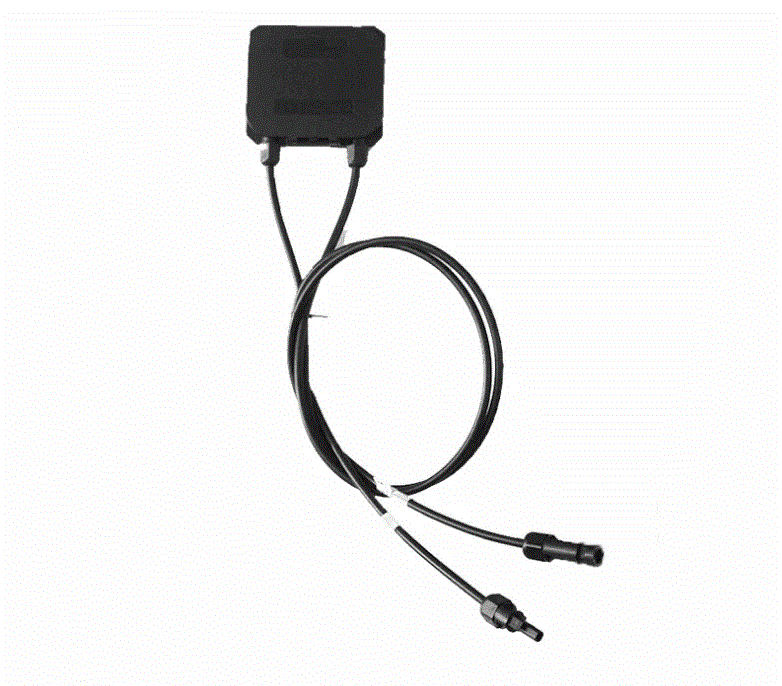

- Junction Box: Protection class IP67/IP68,with bypass diodes
- Cable: 4mm² Solar cable, 90cm length
- Connector: Compatible
Temperature rating
- Rated battery operating temperature: 45±2℃
- Maximum power temperature coefficient: -0.4%/℃
- Open circuit voltage temperature coefficient: -0.29%/℃
- Short circuit current temperature coefficient: -0.05%/℃
Limit parameter
- Operating temperature: -40-+85℃
- Maximum system voltage: 1000/1500VDC
- Maximum fuse rated current: 15A
