2.5kw FCHAO Pure Sine Wave Solar High Frequency Ac Inverter 230V 50Hz KSC-2500W
Ref: KSC-2500W

Input Battery Voltage(V) - (Indicate your choice in the option field)
  • 12V/24V

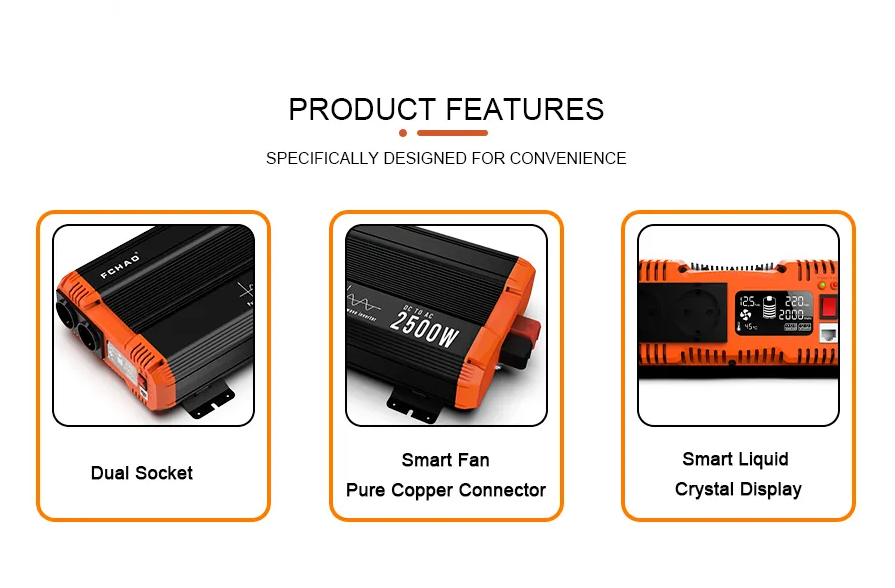

Product features
  • Europe Socket
  • Size: 37.5*26.5*10.3cm
  • Weight: 4.38KG
  • Certificate: CE ROHS
  • Dual Socket
  • Smart Fan Pure Copper Connector
  • Smart Liquid Crystal Display
  • Intelligent LCD screen

Usage scenario
  • Emergency power supply
  • Electricity conversion for hospitals/transportation
  • Outdoor electricity
  • RV power

Layers of protection: Reverse layer protection; High temperature protection; Overload protection; Low voltage protection; High voltage protection; Current short circuit protection
  • Output Protection - Over temperature protection: When the temperature is ≥ 85℃, the AC output will be turned off, and the alarm will sound 5 (continuously)
  • Output Protection - Over temperature protection: Temperature ≤ 75℃ automatic recovery
  • Output Protection - Overload protection: Rated load > 110%～130%,alarm 15sec and turnoff, recovery by the reset switch
  • Output Protection - Overload protection: Rated load > 130%～150%,alarm 5sec and turnoff, recovery by the reset switch
  • Output Protection - Overload protection: Rated load > 150%,alarm 2sec and turnoff, recovery by the reset switch
  • Output Protection - Short circuit protection: Turn off within 2 seconds, recovery after resetting the switch
  • Environment Working temperature: -25° +80°
  • Environment Working Environment: -25° +45°
  • Environment Working humidity: 30%～90% RH,No condensation
  • Environment Storage temperature: ﹣20℃ ～ +70℃
  • Environment Vibretion resistance: 10～500HZ 2G 10min/cycle,X、Y、Z axis 60min respectively
  • Environment Cooling method: Load power: > 50%, FAN ON/ <35%, Fan Off. Temperature > 50±5℃, Fan On / < 45±5℃ Fan Off
  • Safety Electromagnetic Compatibility - Safety Specification: CE/CB
  • Safety Electromagnetic Compatibility - Pressure Resistance: Bat-PG:500VAC Bat-AC:1.5KVAC AC-FG:1.5KVAC
  • Safety Electromagnetic Compatibility - Insulation Resistance: Bat-PG,AC -FG:100M Ohms/500VDC/25℃/70%RH

60 days to retract
Delivery in Europe 3 - 7 working  days

2.5kw FCHAO Pure Sine Wave Solar High Frequency Ac Inverter 230V 50Hz KSC-2500W

Rating is 0.0 out of five stars based on reviews
SKU: KSC-2500W
€268.19Price

  • Technical features

    KSC-2500W

    Output

    • Rated power(Wt): 2500W
    • Peak power(Wt): 5000W
    • AC Voltage (AC): AC230V ±10%
    • Frequency(Hz): 50Hz±1Hz
    • Wave Form: Pure sine wave（THD<3%）
    • Panel LCD show: Isolated LCD digital color screen：Battery power % ratio,Battery voltag,AC voltage, AC power, Temperature

    Input Battery Voltage(V): 12V

    • Voltage Rrange(V): DC10-15V
    • DC Current(I): 250A
    • No load Current Draw(W): ≤10W
    • Efficiency: 88%~92%
    • Battery Type: Open&sealed lead-acid battery(Customized lithium battery parameter )

    Battery Input Protection for 12V Battery Voltage(V)

    • Internal Fuse: 40A*8
    • Low voltage alarm: Yes
    • Low voltage cutoff: 10V±4%
    • Battery reverse polarity protection: By blowing the internal fuse

    Input Battery Voltage(V): 24V

    • Voltage Rrange(V): DC20-30V
    • DC Current(I): 125A
    • No load Current Draw(W): ≤10W
    • Efficiency: 88%~92%
    • Battery Type: Open&sealed lead-acid battery(Customized lithium battery parameter )

    Battery Input Protection for 24V Battery Voltage(V)

    • Internal Fuse: 40A*4
    • Low voltage alarm: Yes
    • Low voltage cutoff: 20V±4%
    • Battery reverse polarity protection: By blowing the internal fuse
