Ref: AS340M-72
- Cell: 72 cells mono solar cell
- Cell size: 156.75mmx156.75mm
- Panel Dimensions: 1956mmx992mmx40mm
- Panel Efficiency: 340w
- weight: 20.5kg
- Cable: 4mm² Solar cable, 90cm length
- Junction Box: Protection class IP67/IP68,with bypass diodes; Rated Waterproof
- Connector: Compatible Connector
- Frame: Anodized Aluminium Alloy
- Frame Color: white
- Front Cover: 3.2mm Tempered Glass
- Warranty: 30 years
- Certificate: CE, TUV, IEC, IOS
1 Photovoltaic panel 340Wp.
30 days to retract
Free delivery in Europe 3 - 5 working days

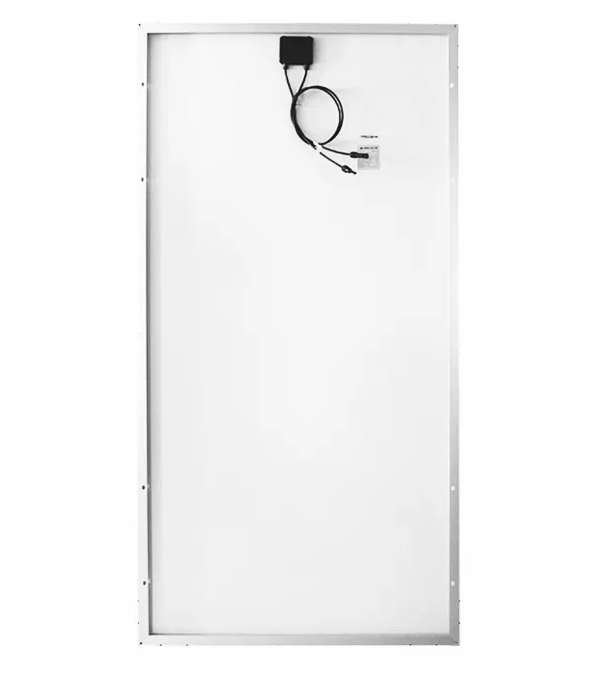

340Wp Solar Panel monocrystalline AS340M-72
Rating is 0.0 out of five stars based on reviews
SKU: AS340M-72
€80.00Price
Frame colour
Technical features
- Maximum efficiency: 340W±3%.
- MPP voltage (VmpV): 37.3 V
- Current (ImpA): 9.39 A
- No load voltage (Voc): 46.2 V
- Cut-off current (Isc): 9.78 A
- Rated battery operating temperature : 45±2℃
- Maximum power temperature coeff.: -0.4%/℃
- Open circuit voltage temp. coeff.: -0.29%/℃
- Short circuit current temperature coeff.: -0.05%/℃
- Operating temperature: -40-+85℃
- Maximum system voltage: 1000/1500VDC
- Maximum fuse rated current: 15A
